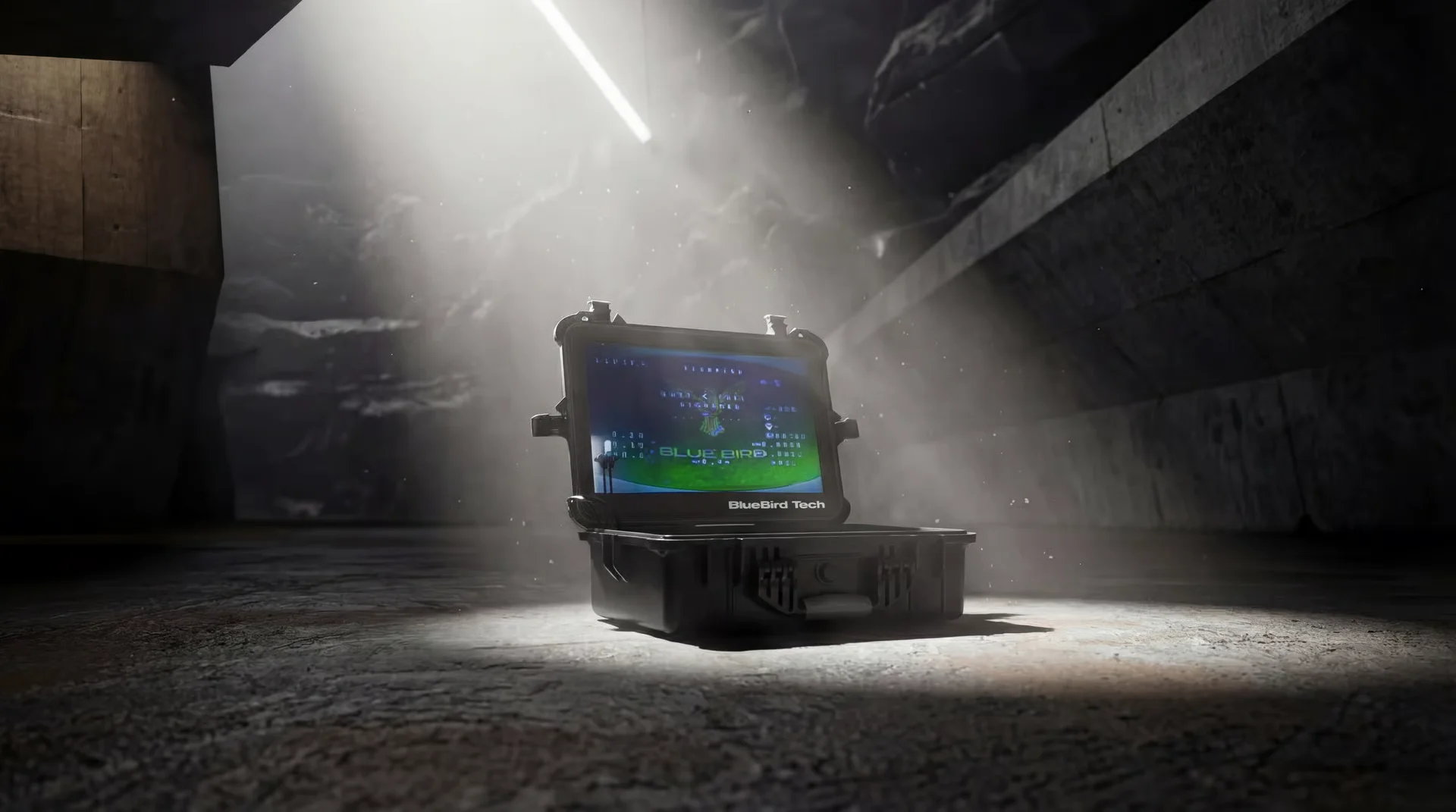

Ground repeater station The ground repeater station is designed to create an intermediate communication node between the operator and the UAV, ensuring video signal reception and transmission of control commands.
Modification and technical characteristics

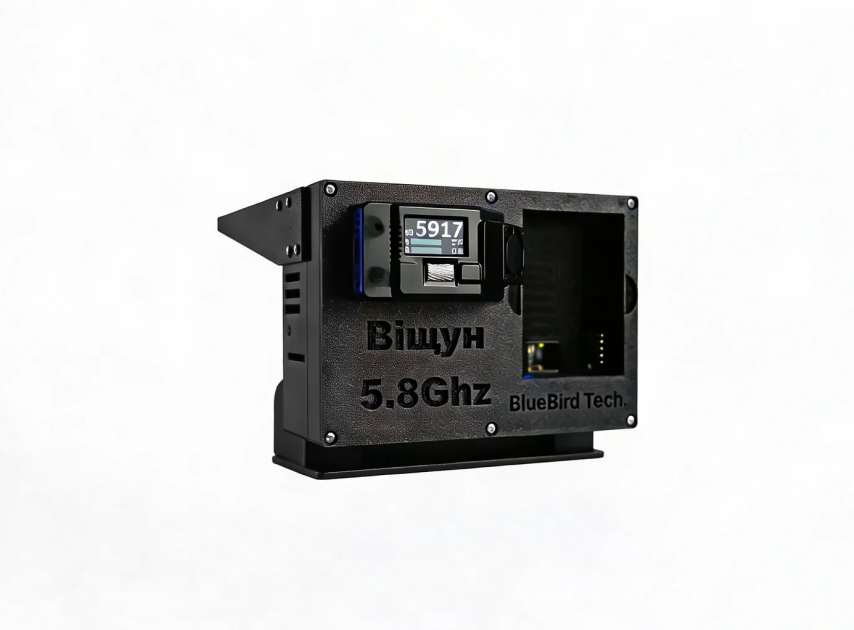

"Vishchun - 5.8" wireless repeater

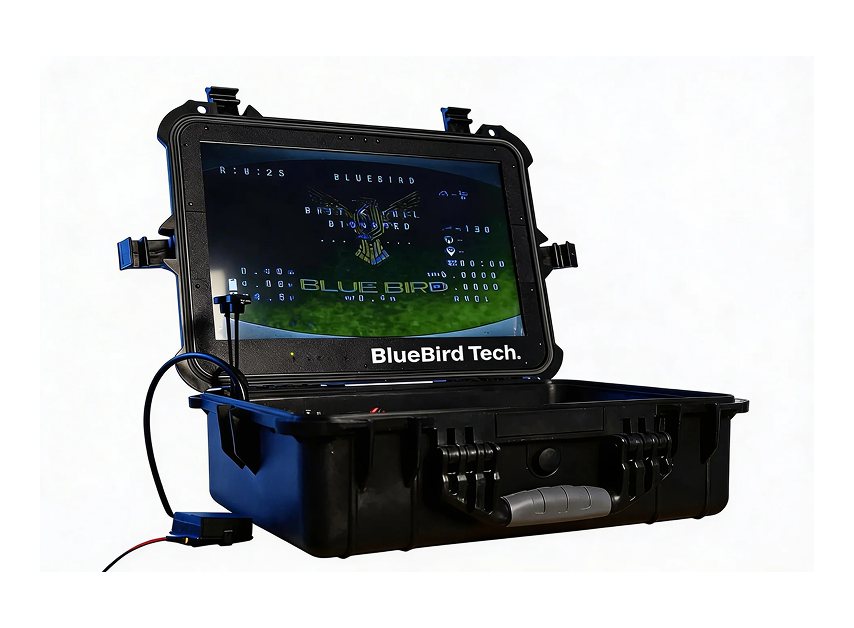

"Vishchun-HC1" ground control station

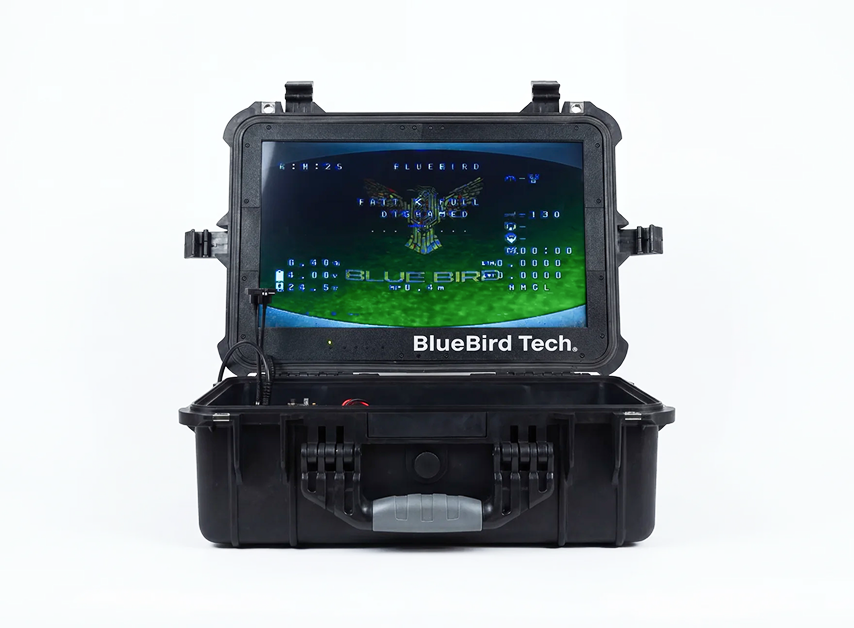

"Vishchun-K1" UAV Control Complex
"Vishchun" is a line of ground-based control and repeater systems designed to provide stable video communication and transmission of control commands for FPV drones over long distances in situations where a direct link is limited by terrain, buildings, obstacles, or interference.
The "Vishchun-HC1" ground control station sets up the pilot/navigator workstation and allows operation from cover using external antenna modules and cables. The "Vishchun-5.8" ground wireless repeater is mounted on a mast and provides two-way communication: it receives the video signal from the UAV, transmits it to the operator, and relays control signals in the opposite direction, extending the operational range up to 25 km (depending on conditions). The "Vishchun-K1" system combines a station, repeater, 9 m telescopic mast, and antenna kit for rapid deployment of a fully functional ground communication node.
Contact usKey Features
Video reception in the "Vishchun" systems is implemented using SKYZONE SteadyView X 5.8G receivers with a sensitivity of −98 dBm ± 1 dBm, which enhances performance with weak signals and reduces the risk of video loss in challenging radio environments.
Video reception in the "Vishchun" systems is implemented using SKYZONE SteadyView X 5.8G receivers with a sensitivity of −98 dBm ± 1 dBm, which enhances performance with weak signals and reduces the risk of video loss in challenging radio environments.
Technical characteristics
Video reception in the "Vishchun" systems is implemented using SKYZONE SteadyView X 5.8G receivers with a sensitivity of −98 dBm ± 1 dBm, which enhances performance with weak signals and reduces the risk of video loss in challenging radio environments.
Deploying external antenna modules allows operation from cover and positions the antennas in a "cleaner" reception location.
Autonomous power from a 6S2P battery provides up to 8 hours of operation for the repeater, while the ground station with two 6S2P batteries operates for up to 6 hours.
The production and technical support of the “Vishchun” ground repeater are provided by Zaruba Tech.
The production and technical support of the “"Vishchun" Ground Repeater Station” drone detector are provided by Zaruba Tech.
